Product Details
＋
DESCRIPTION:

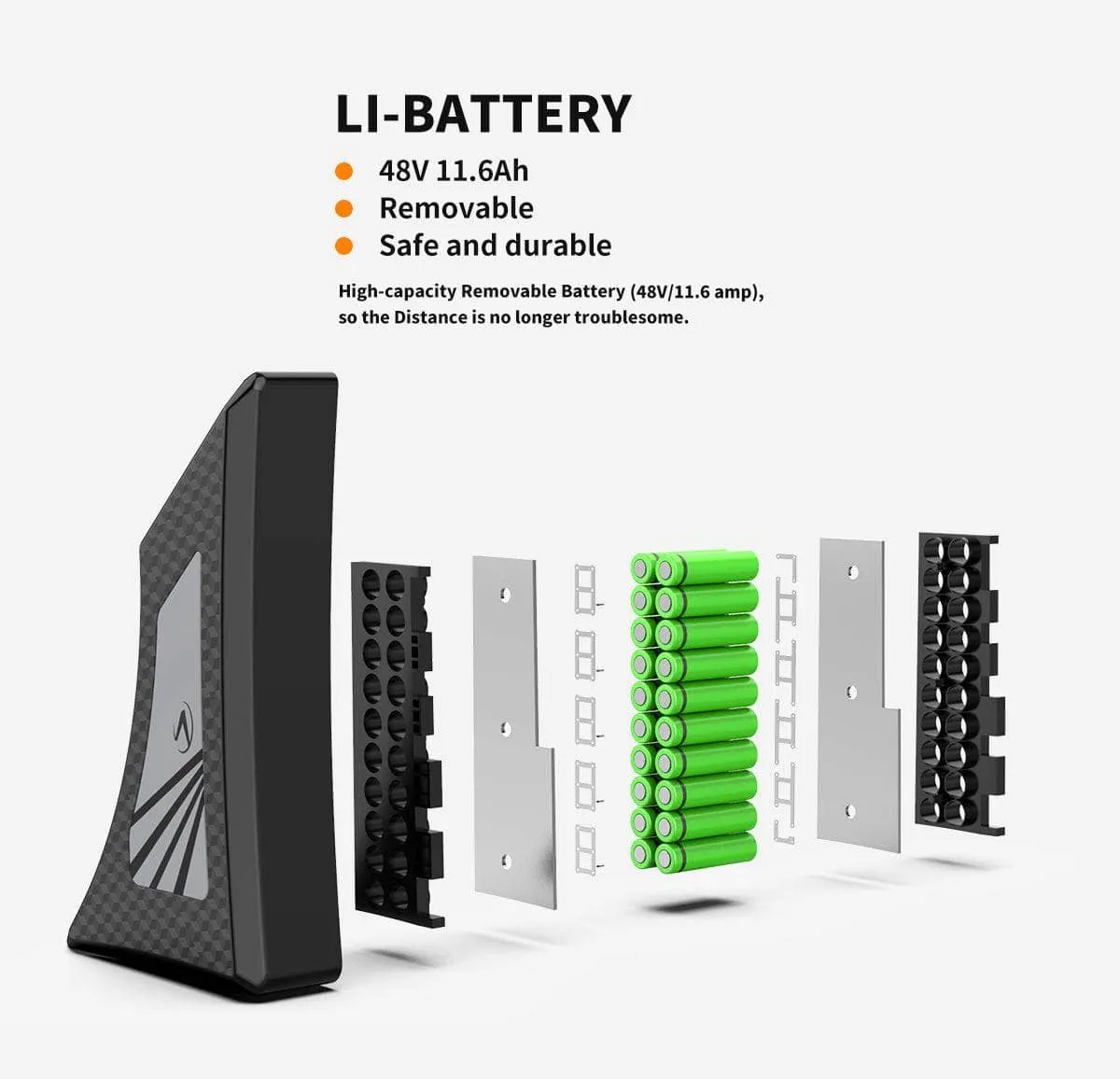

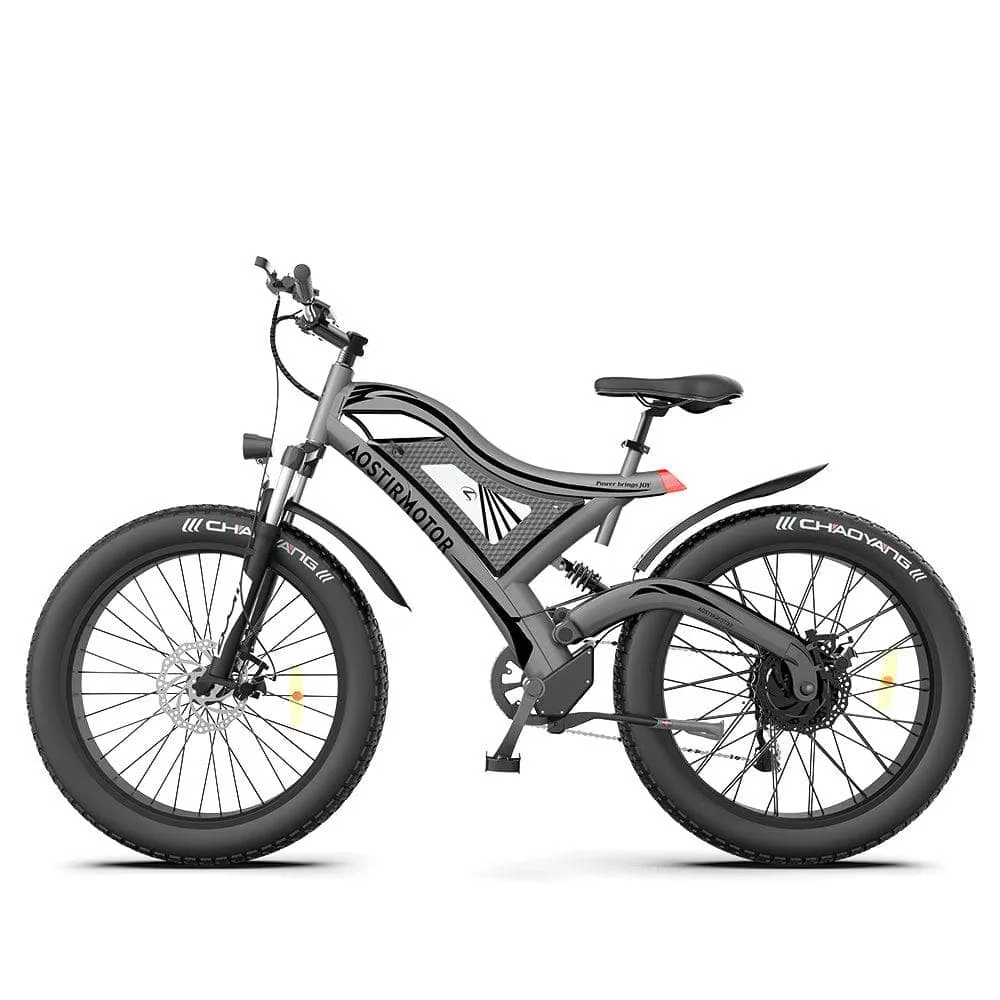

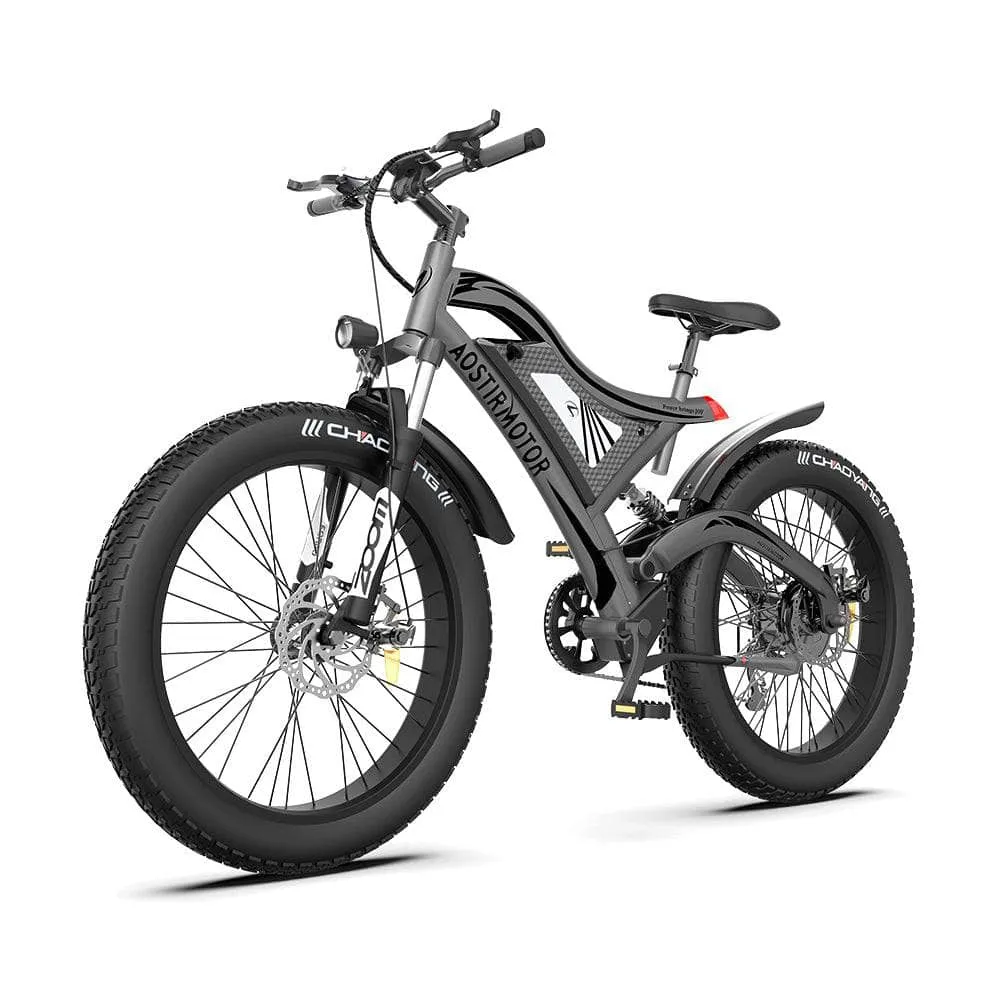

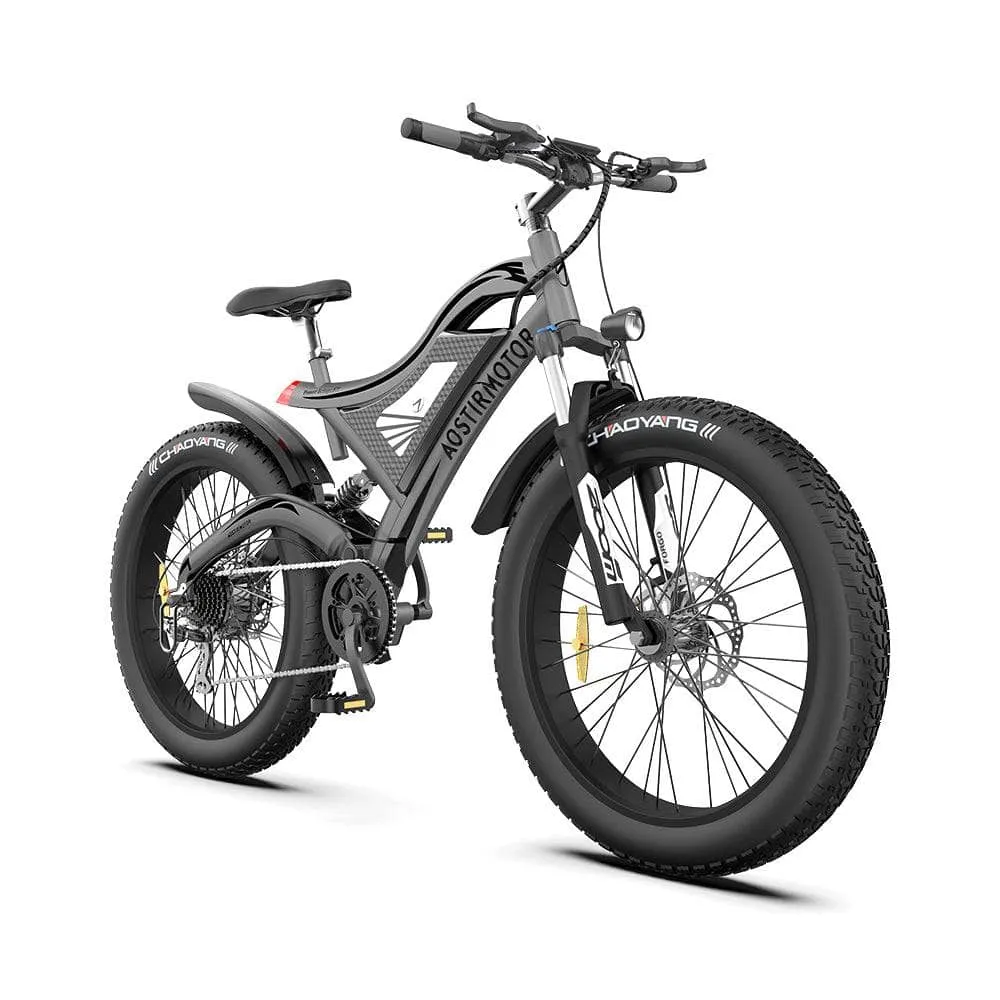

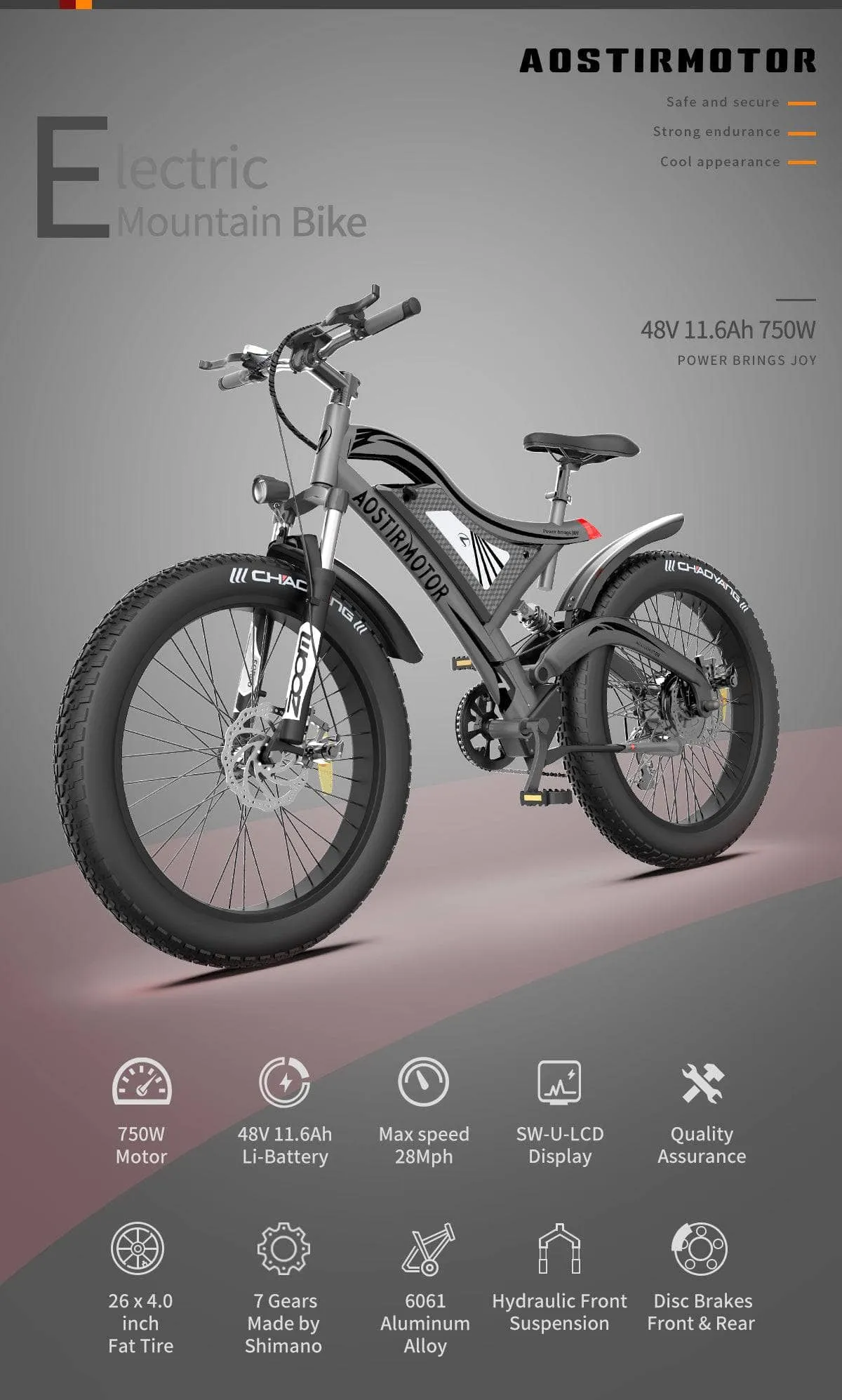

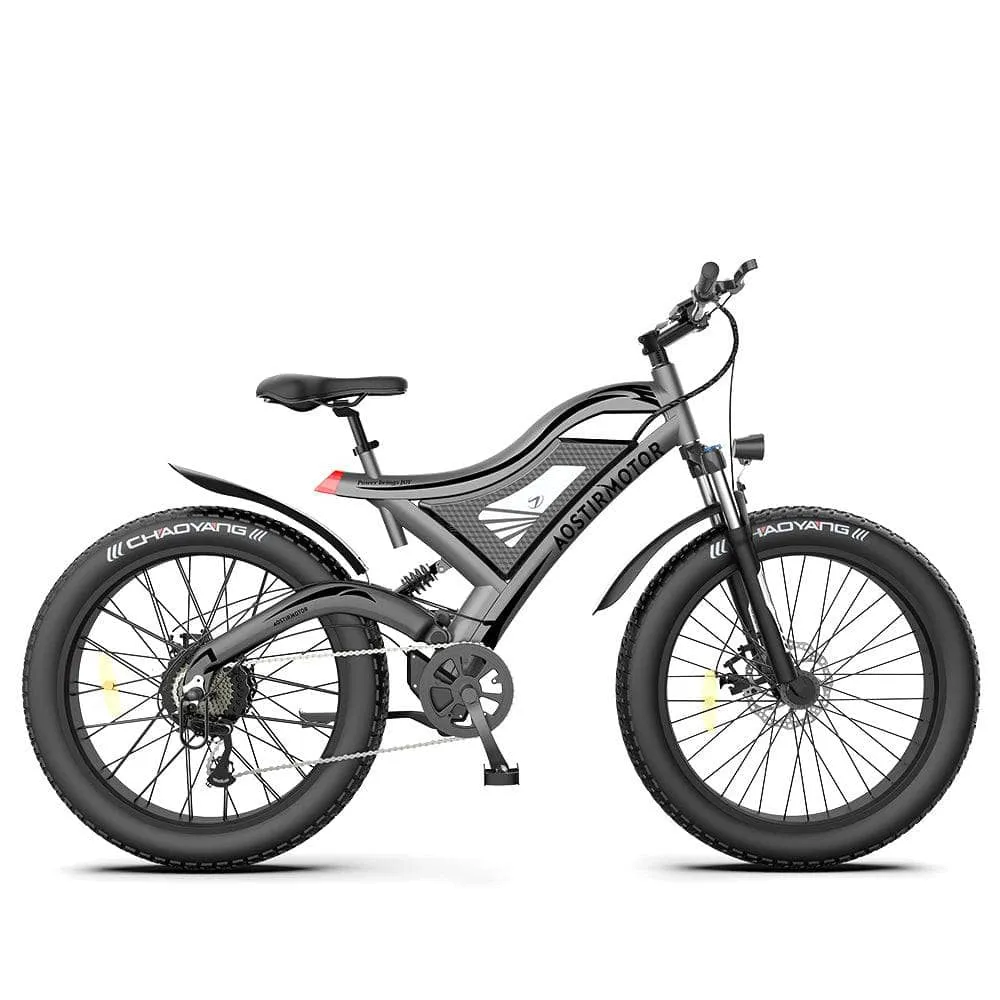

All Terrain Electric Mountain Bike S18 with a powerful 750W motor, Strong driving force, Long Endurance, and Removable 48V 11.6ah Lithium Battery supports 15 mph speed, charging time 4-6 hours.
SPECIFICATIONS:
| System | Components | Technical Parameters |
| Power System | Battery | 48V 15Ah lithium battery |

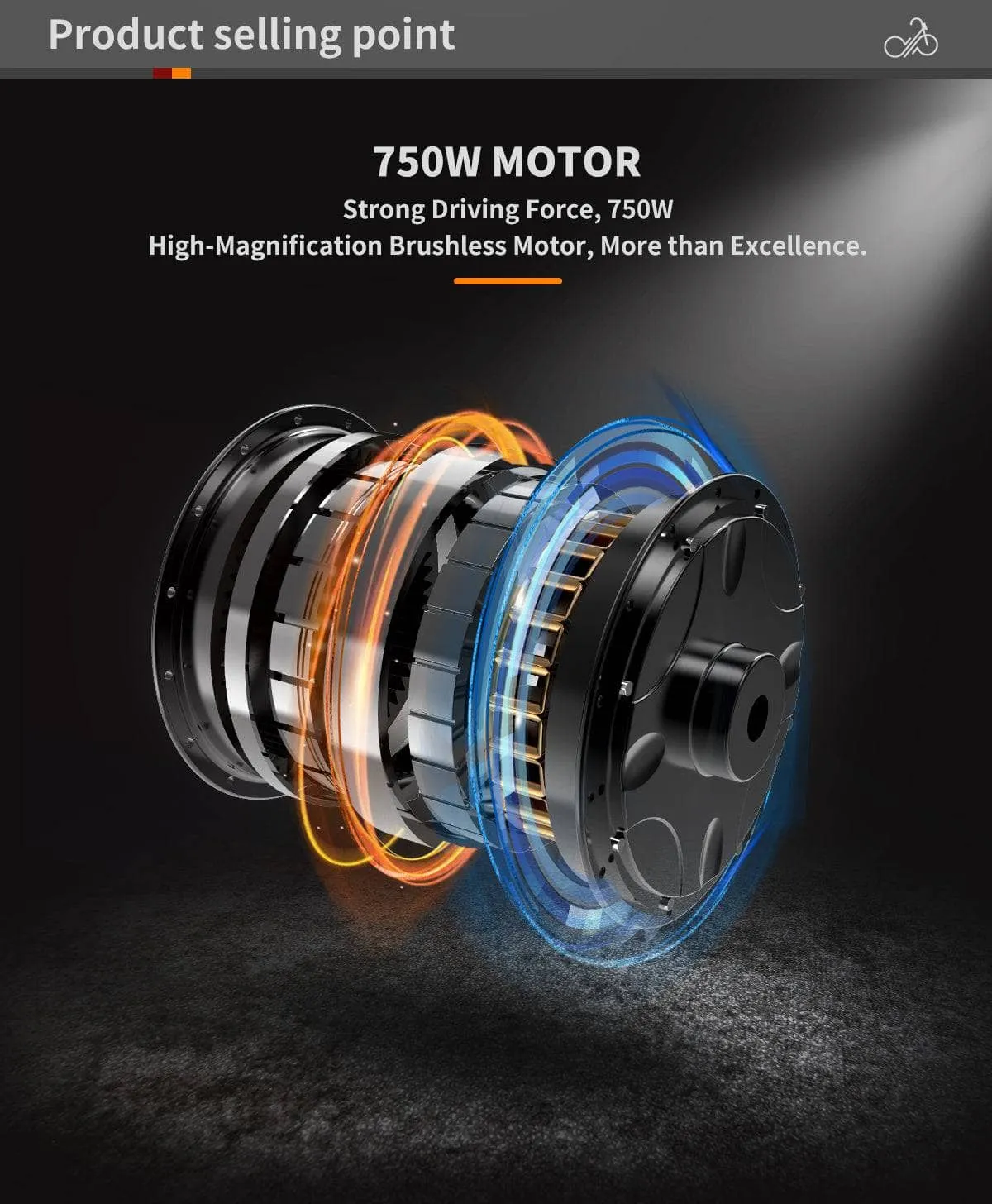

| Motor | 750W Motor (Brand: TRUCK, Refer to Bafang Quality) | |
| Controller | 48V 22A | |
| Charger | 110-220V（US/Europe） | |

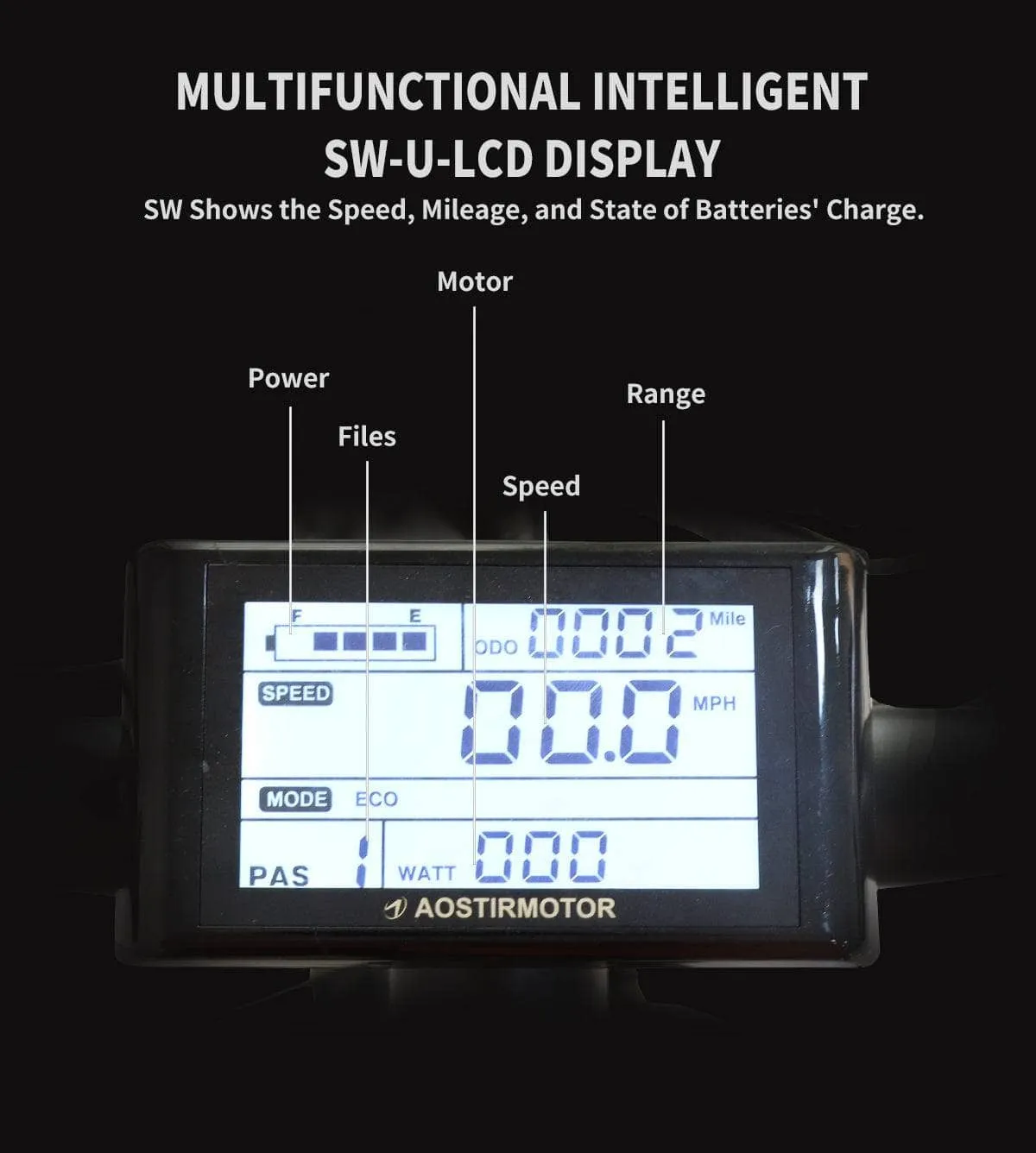

| Display | SW-U-LCD | |
| Turn-Handle | Rotary | |
| Power sensor | PAS intelligent pedal assistant system | |

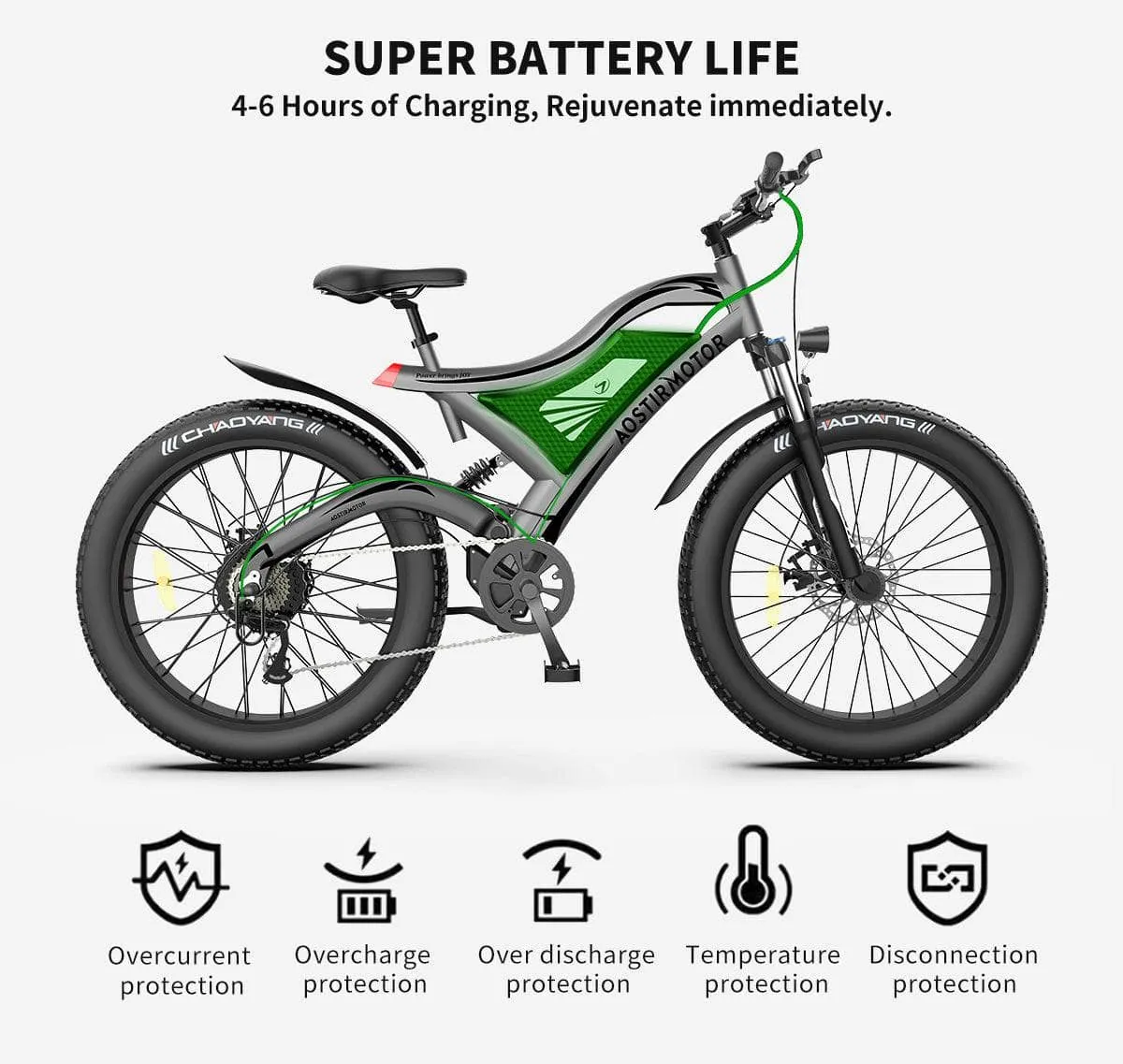

| Charge Time | 4-6 hours （Recharge regularly to extend the life of battery） | |
| Structure Sytem | Fork | ZOOM/MOZO |

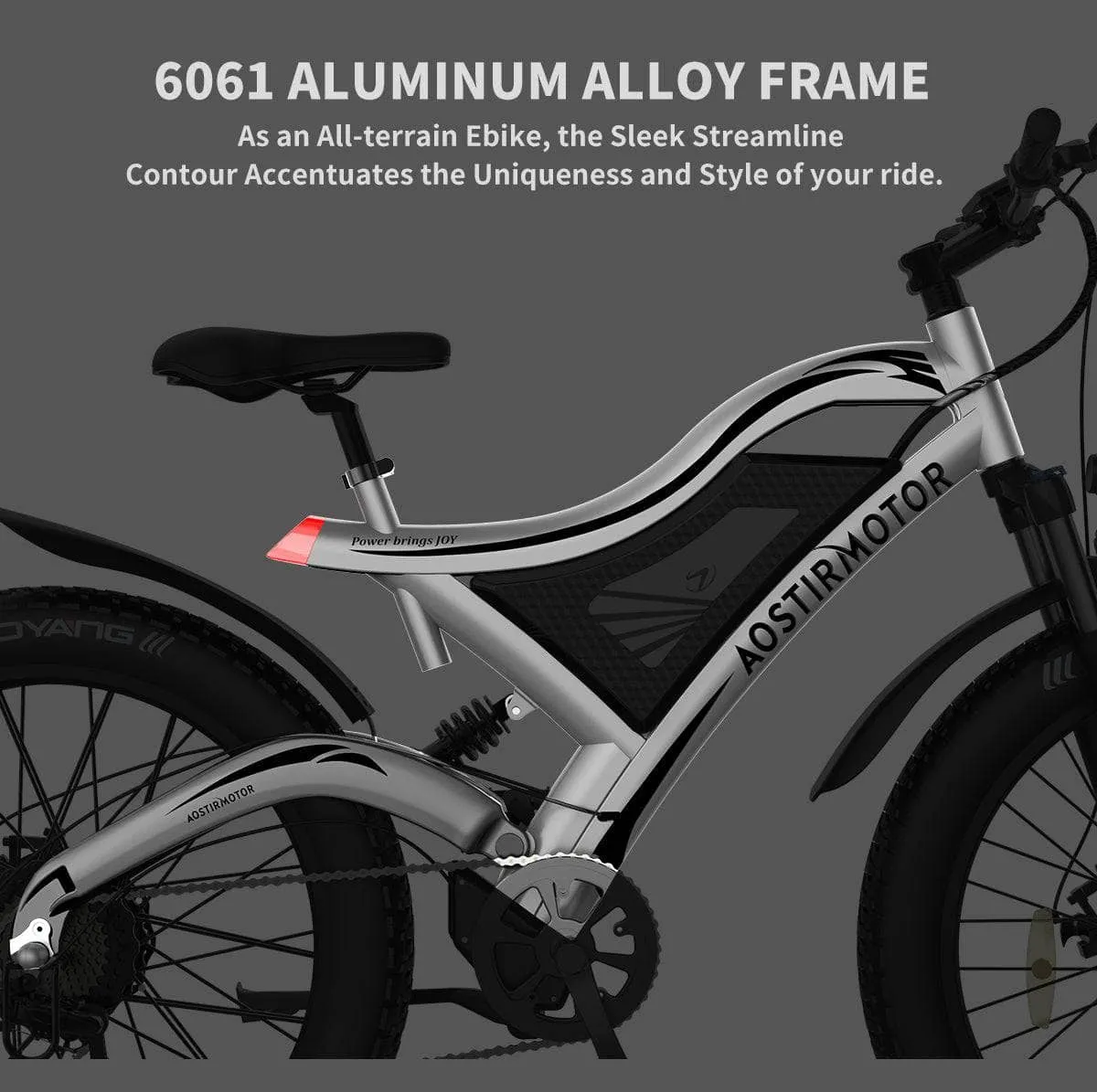

| Frame | 6061 Aluminum Alloy | |
| Handlebar | 31.8*660mm | |
| Stem | 28.6*31.8*110mm | |
| Rear Rack | NO (Optional) | |
| Brake System | Brake | F/R Mechanical Brake（With 4pcs Brake Pads） |
| Disc Brake | Front 180 & Rear 160 | |
| Brake lever | Universal | |
| Wheel system | Rim form | Spoke wheel |
| Rim Material | Aluminum alloy | |

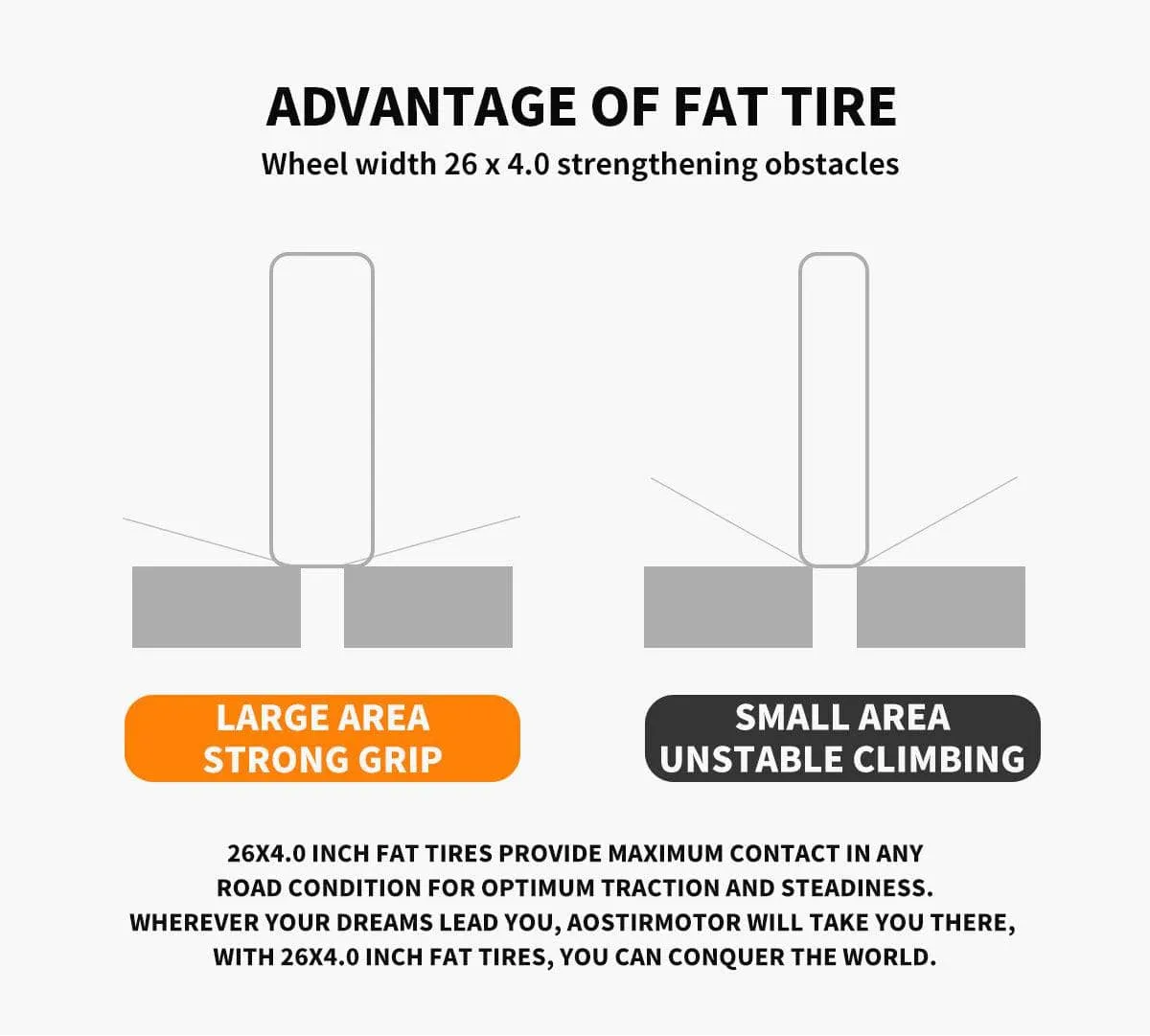

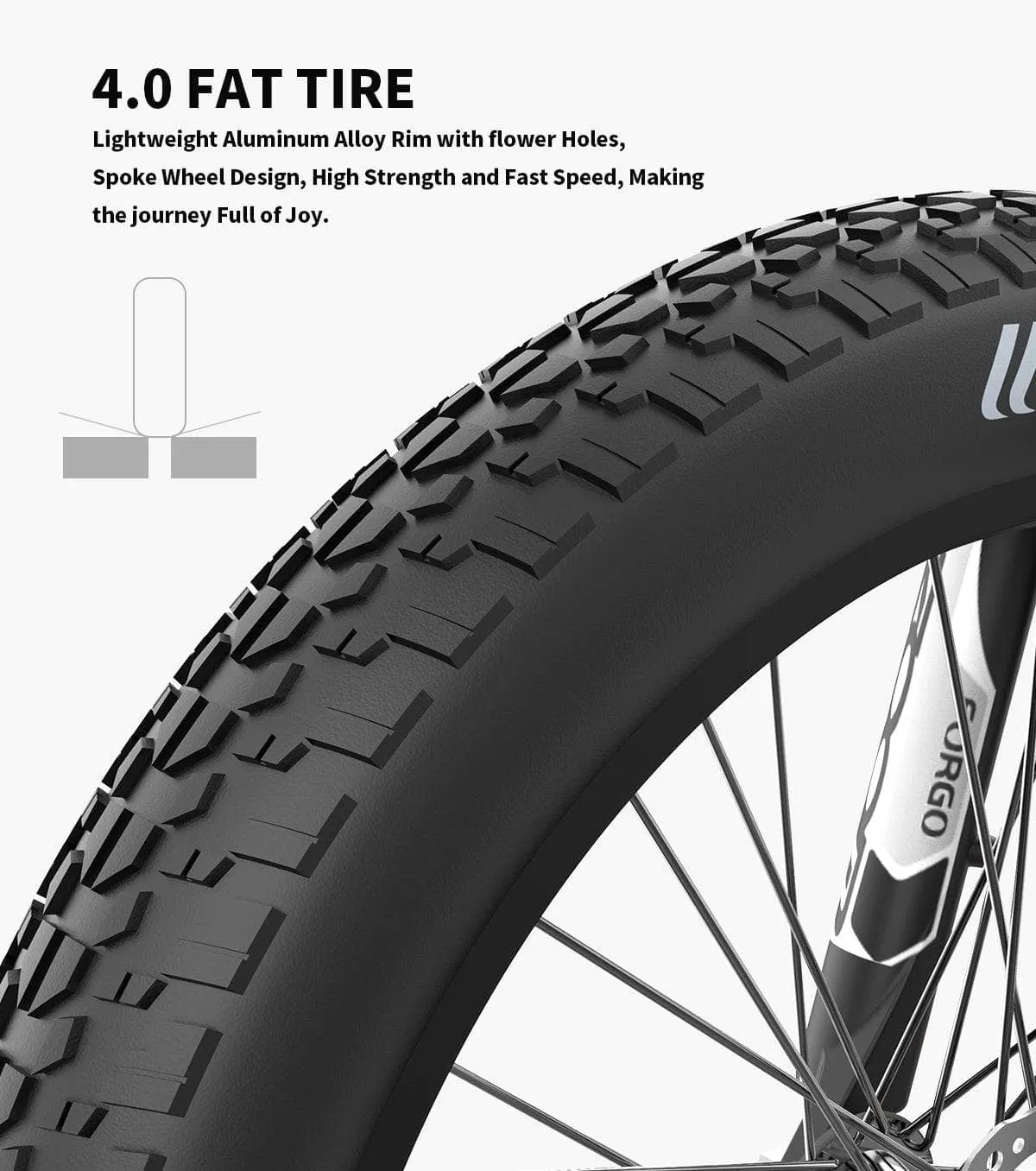

| Tire | 26x4.0 inch Fat Tire | |

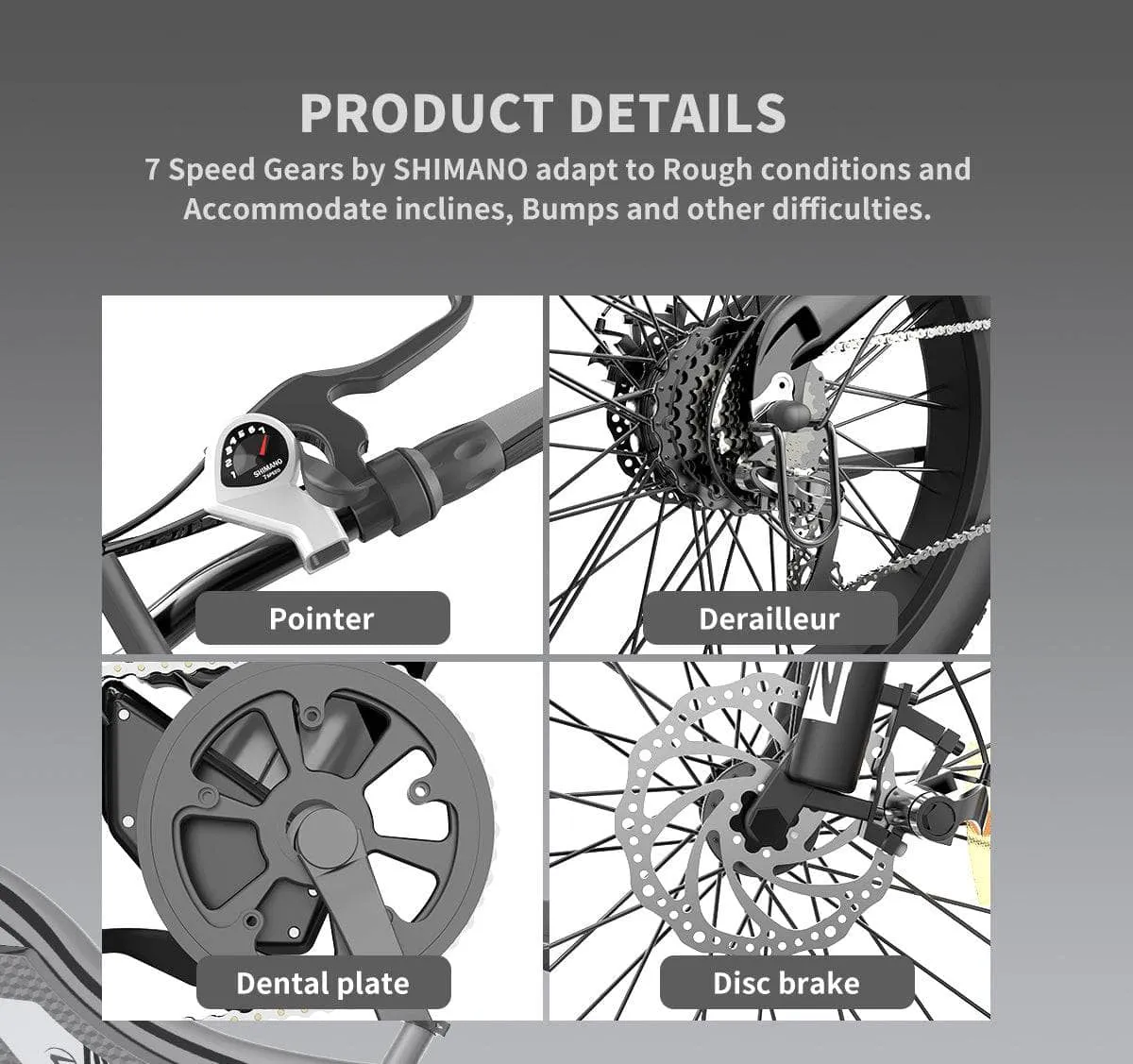

| Speed System | Gear Shift Lever | 7 Speed Dial SHIMANO/Sunrace |
| Derailleur | 7 Speed SHIMANO/Sunrace | |
| Throttle | With | |

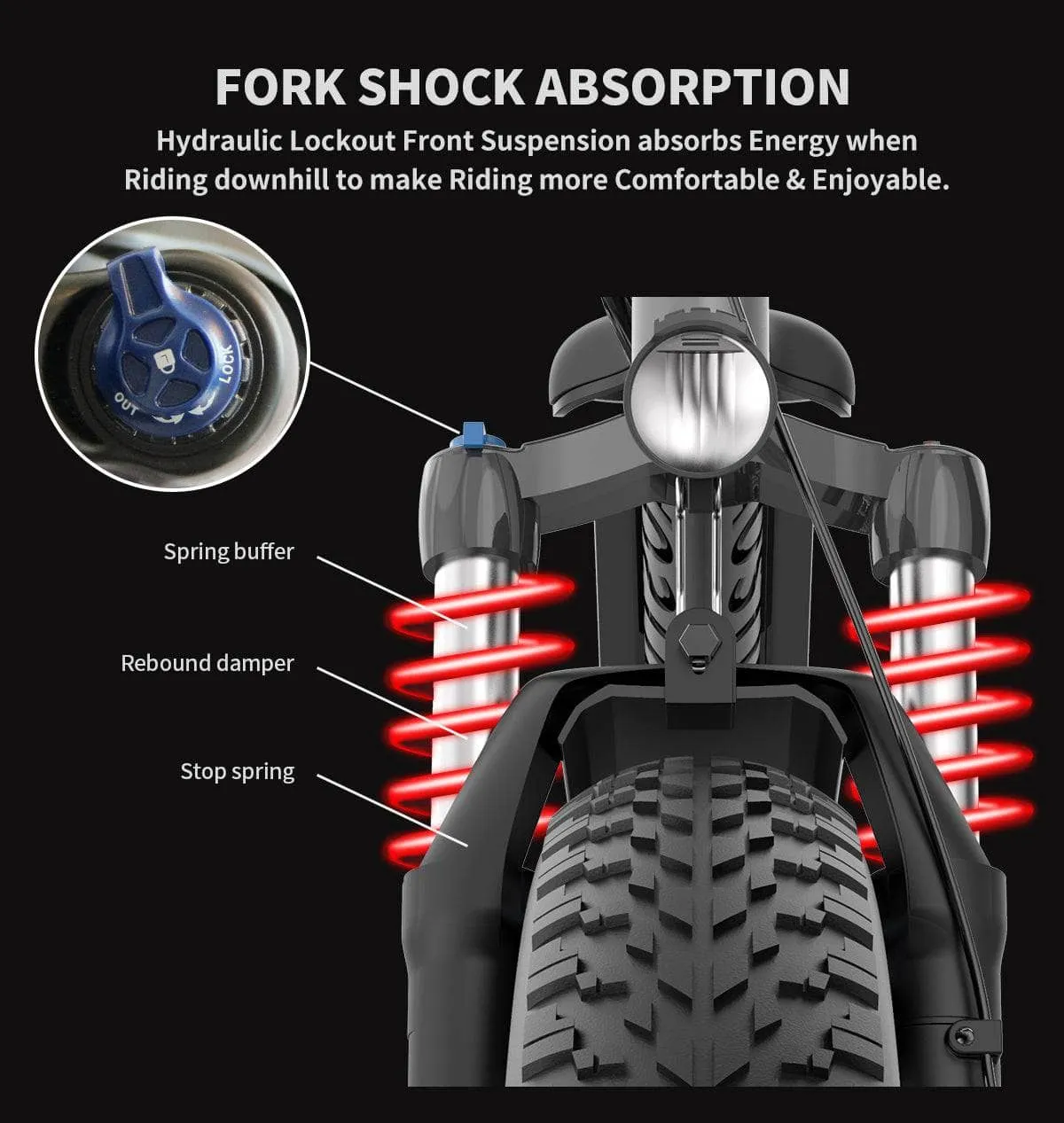

| Shock absorption System | Front suspension | Fork shock absorption |

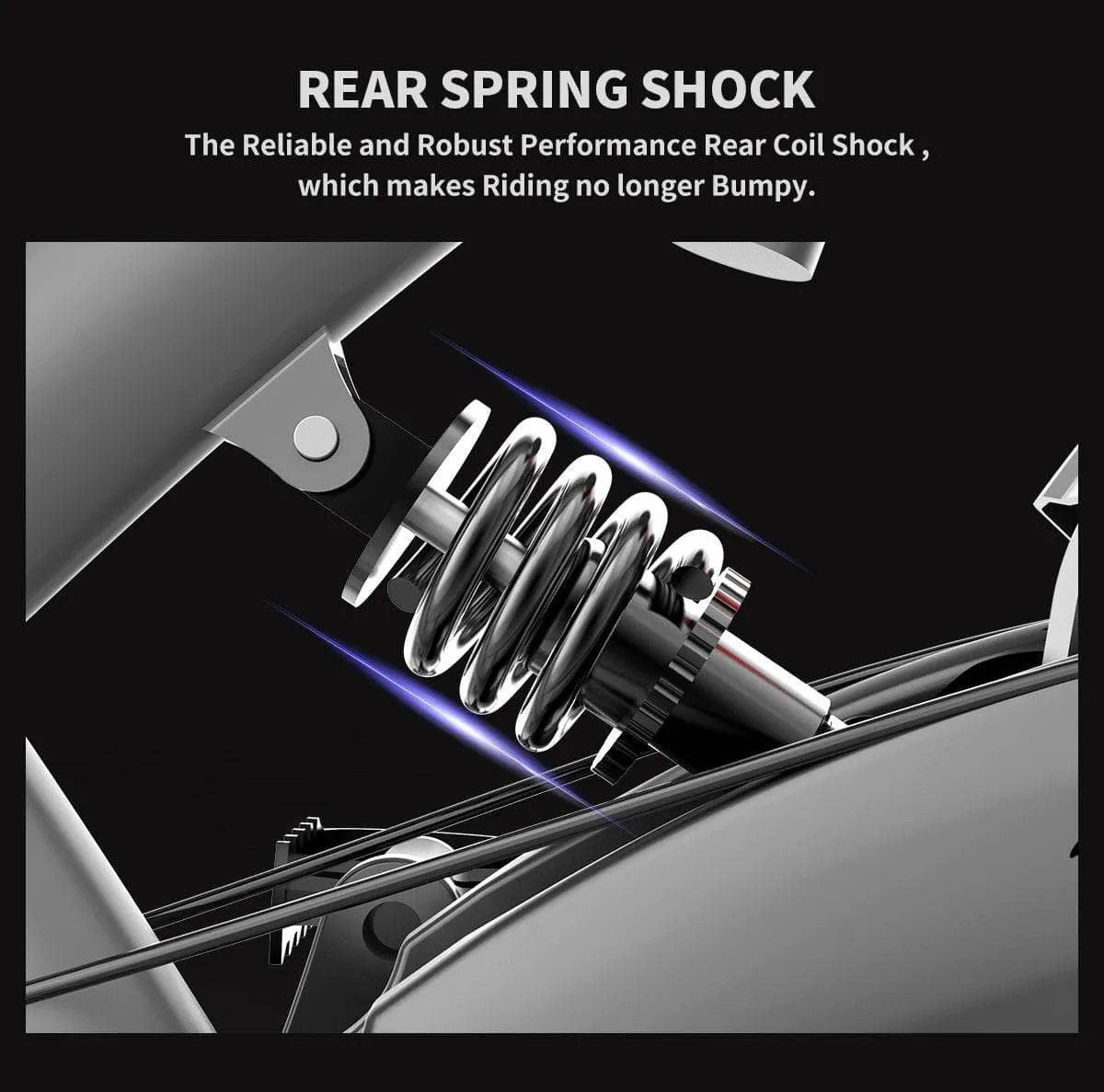

| Rear suspension | Rear spring shock | |
| Structure shock absorption | Lightweight Aluminum Alloy Frame | |
| Other parts | Saddle | City type |
| AL6061 T4T6 | ||
| 27.2*250mm | ||
| Tube Clamp | D1=30mm D2=38mm | |
| Light | With Front and Rear light | |
| Pedal | Universal | |
| Footrest | Universal | |
| Fender | With | |

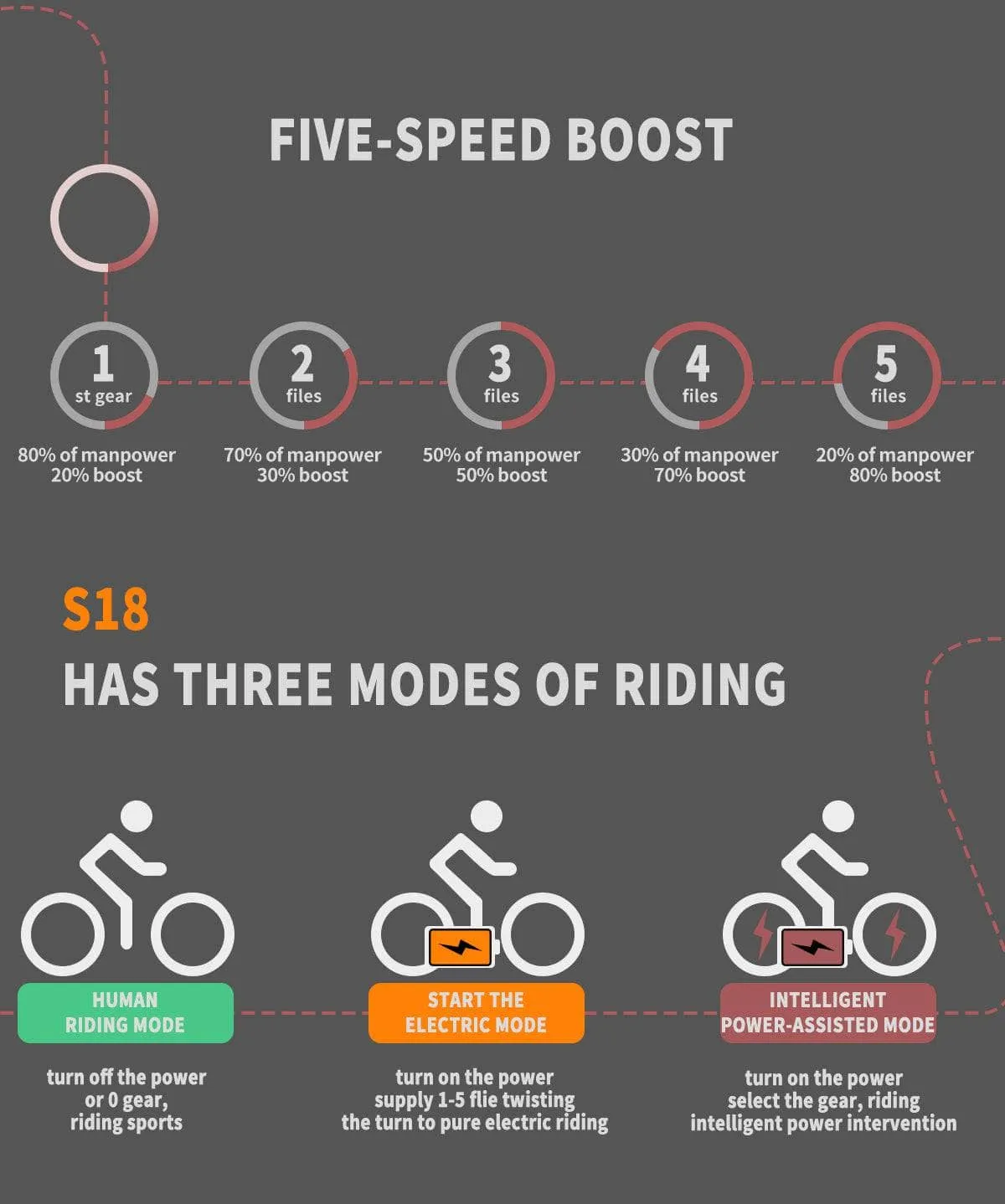

| Performance | Riding mode | Pedal Mode / Boost Mode / Power Mode |
| Range Distance | 25-35 km （Pure Power mode） | |
| Max Speed | 45 km/h | |
| Product Parameter | Color | Black |
| Net Weight | 35kg | |
| Gross Weight | 40kg | |

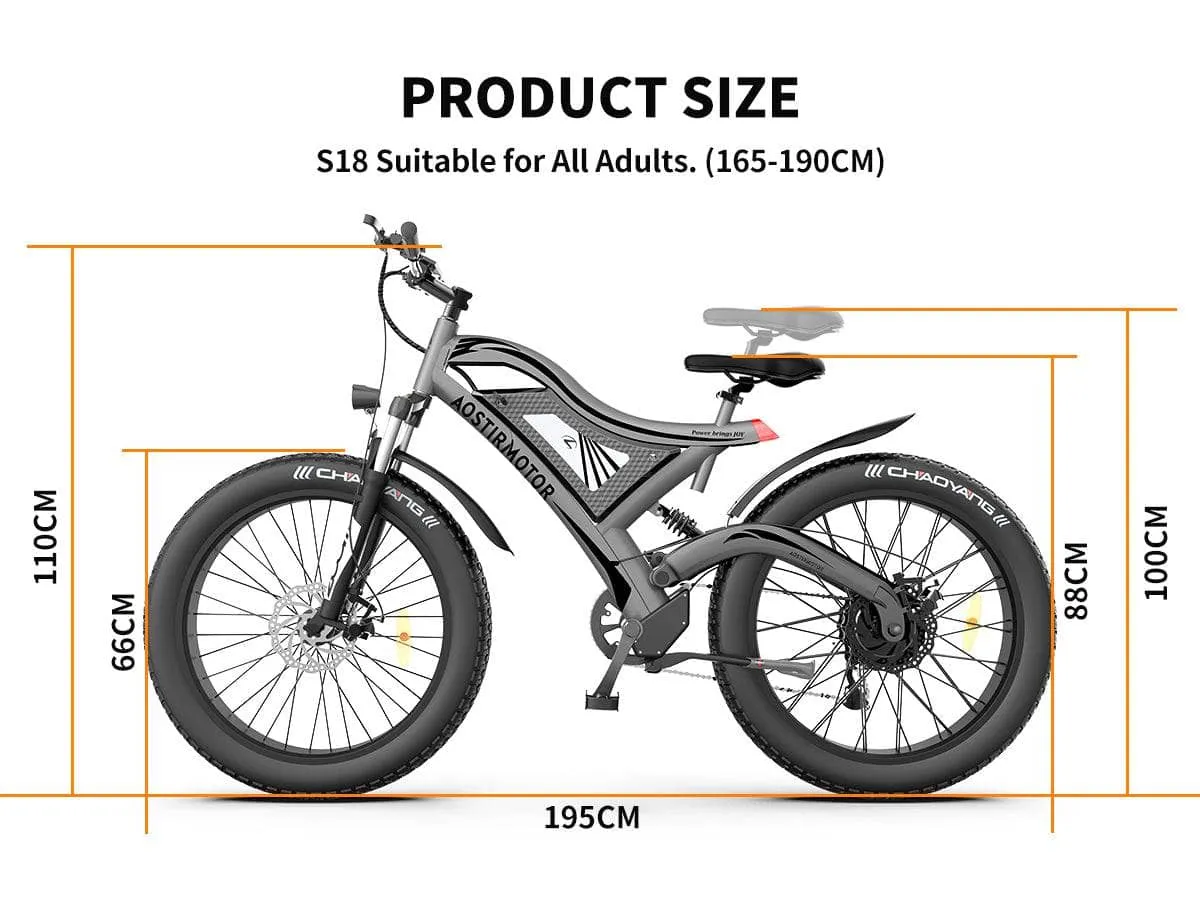

| Product Size | 195*110cm | |
| Package Size | 163*28*82cm | |
| Saddle Height | 88-100cm | |
| Weight Capacity | 300 LB |
ASSEMBLY:
Some assembly required, ships 90% assembled. Bicycle is easy to assemble with basic bicycle knowledge. Assembly instructions available
WARRANTY:
1 Year Warranty - 1 Year Battery Warranty
Learn more about our .
RETURNS:
If you wish to return your purchased item, you may do so within 30 days of delivery. Learn more about our .
